Fluidampr 300008 Cummins Full Power Installation Kit

Description

Fluidampr 300008 Cummins Full Power Kit

Fluidampr 3000008 Cummins Performance Diesel Damper Full Power Installation Kit is the ultimate harmonic damper retention kit for the following Cummins diesel engines:

• 1989 to 1998 12 Valve 5.9L Cummins performance engines
• 1998.5 to 2002 24 Valve 5.9L Cummins performance engines
• 2003 to 2009 5.9L Cummins performance engines.
• 2007.5 to 2026 6.7L Cummins performance engines.

Fluidampr 300008 Performance Diesel Damper Installation Kit Contains:

• One ½” thick torque plate with a textured finish.
• Four heat-treated, high strength extended length ARP® damper bolts.
• One diamond-impregnated friction washer.

This kit is used in conjunction with the Fluidampr 300002 Cummins Drill Pin Kit for applications above 3,500 rpm.

Fluidampr 300008 Cummins Full Power Kit is designed as the ultimate damper installation kit with these unique components:

• A ½” thick torque plate with textured finish mounts between the damper face and the crankshaft to distribute the clamping load across a greater surface area. The torque plate incorporates a 5/8” hex head for barring the engine over.
• The four ARP high strength bolts are made from a special alloy and heat-treated to provide increased strength along with a wider and stronger clamping surface. These extended length bolts are required to compensate for the thickness of the torque plate which these bolts pass through when installed.

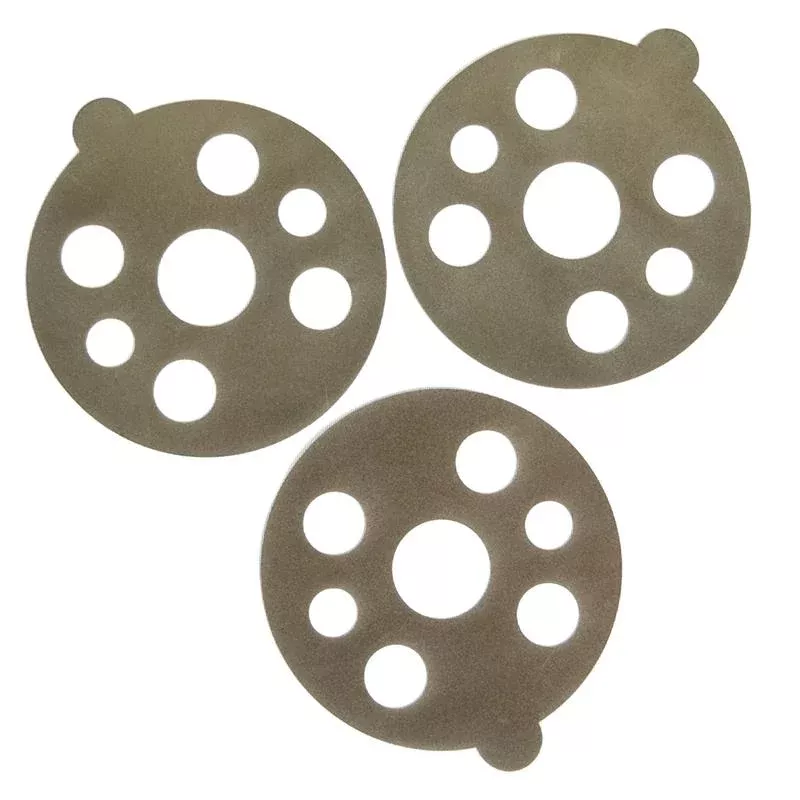

• The diamond-impregnated friction washer is included to provide an increased surface contact area between the crankshaft and the damper. are also included.

This kit is used in conjunction with the Fluidampr 300002 Cummins Drill Pin Kit for applications above 3,500rpm used for drag racing and sled pulling. If your Cummins turbo diesel engine has more than 700 horsepower and 1,250 ft-lbs torque this is the Damper mounting kit you need! Proudly MADE IN THE USA!

NOTE: For high-performance high power level 5.9L or 6.7L Cummins diesel engines that exceed 3,500 rpm KLM Performance recommends your Harmonic Damper damper should be pinned to the crankshaft using the Fluidampr 300002 Cummins Drill Pin Kit.
